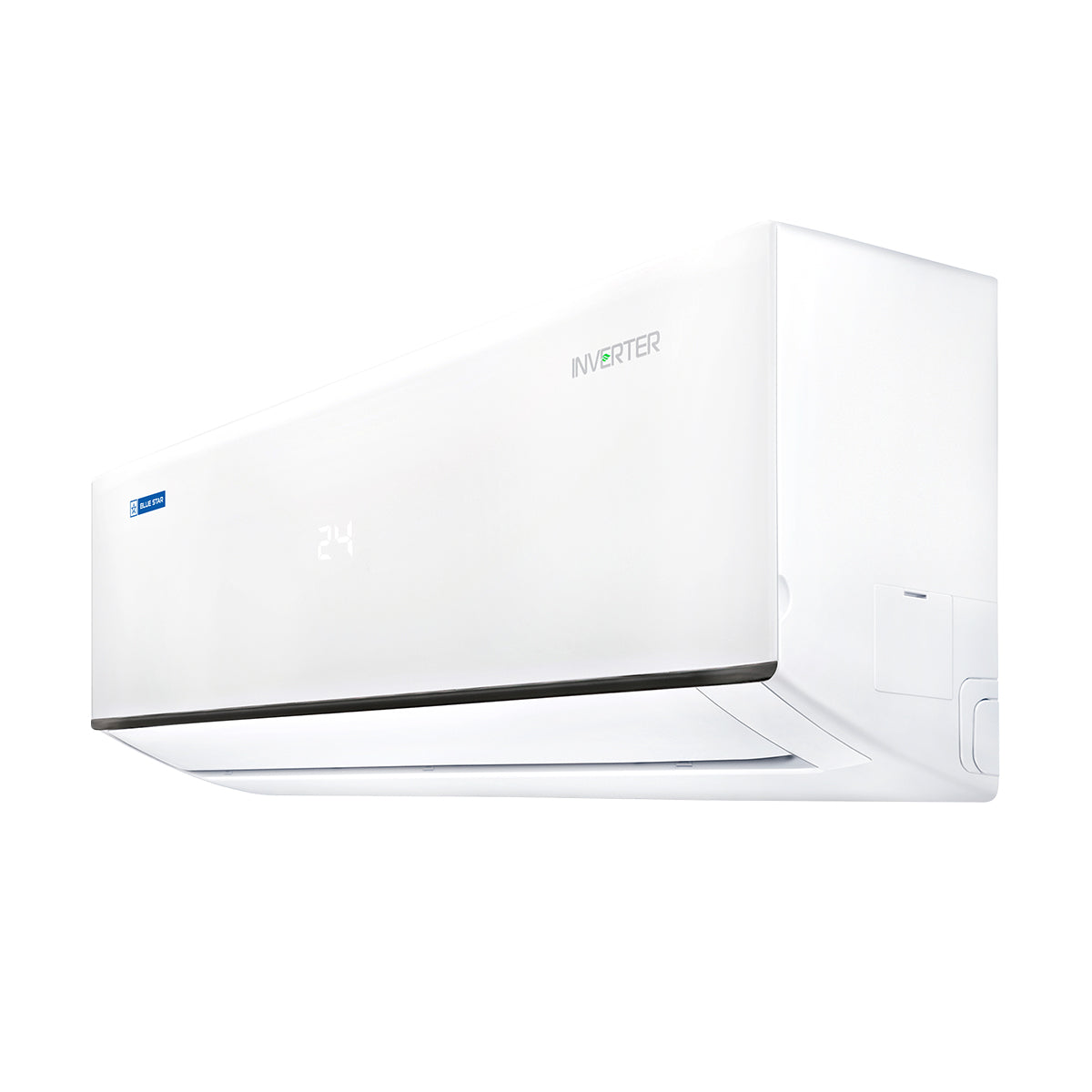

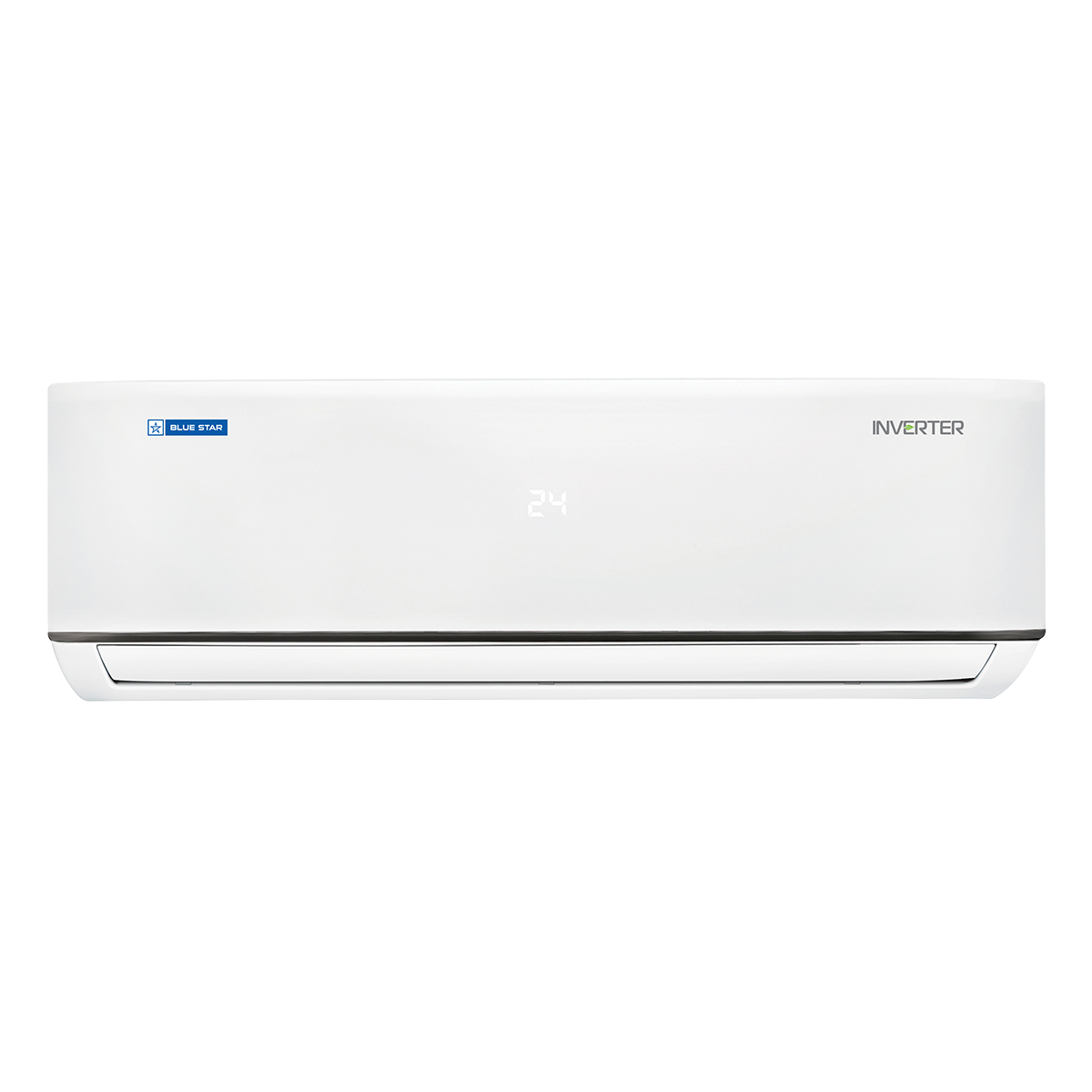

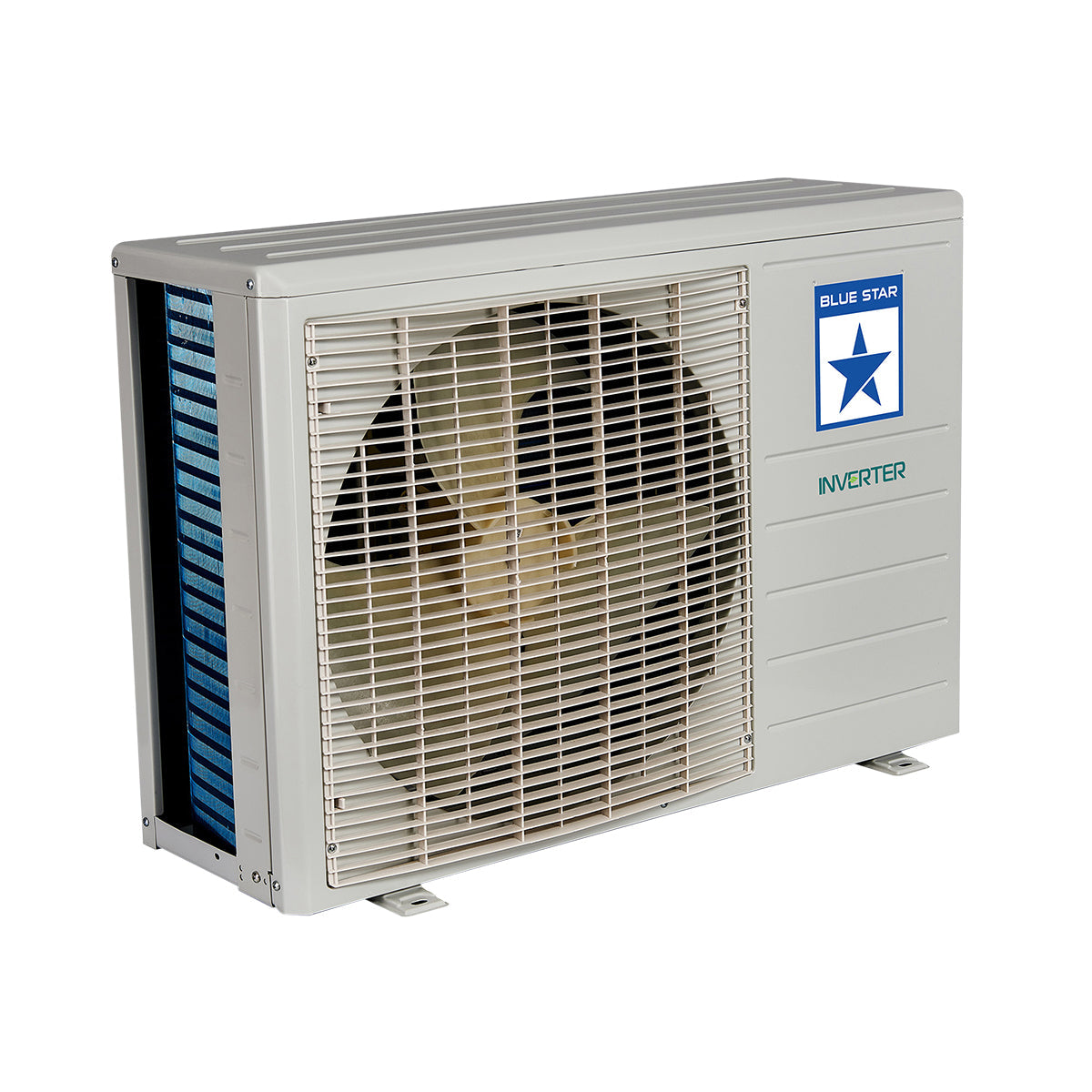

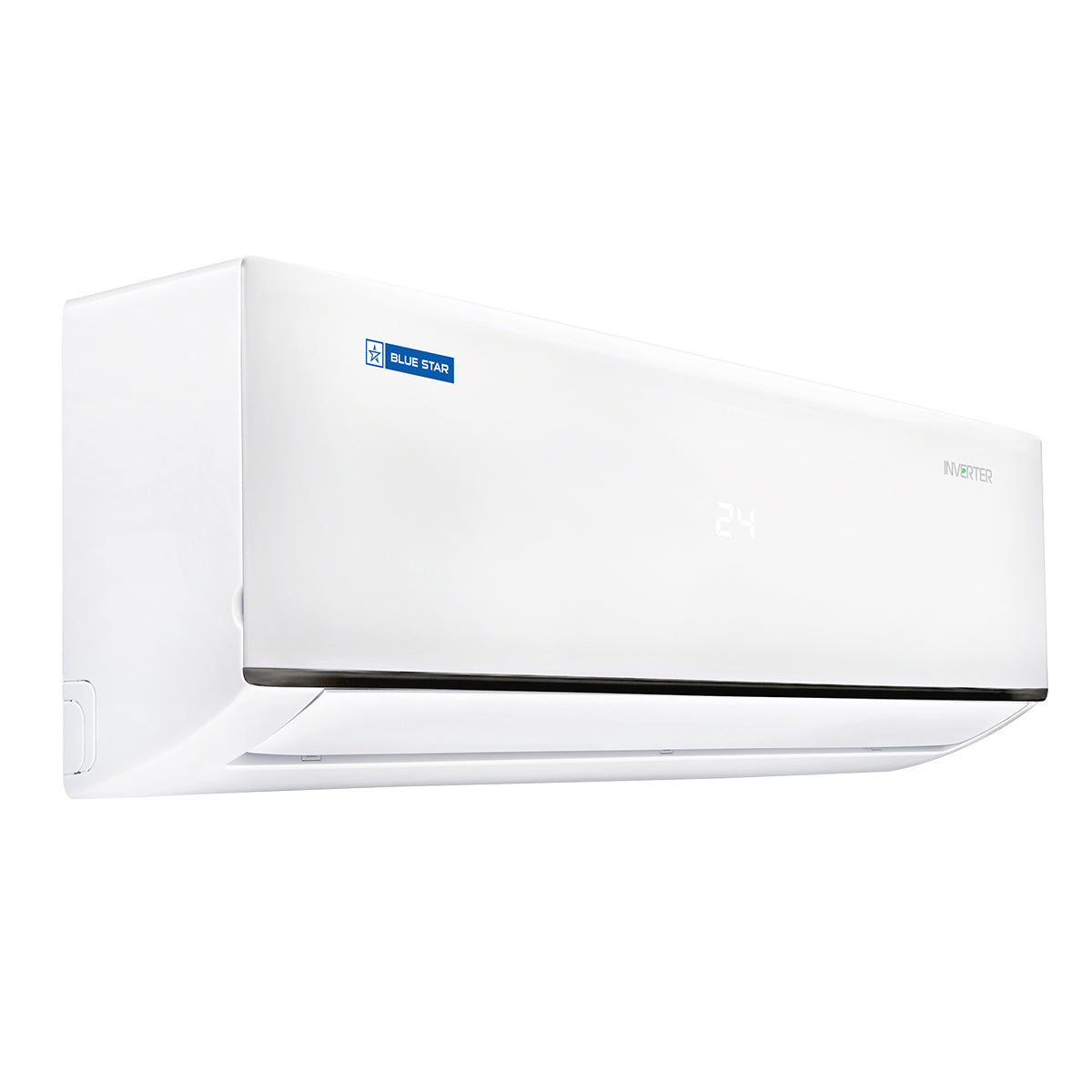

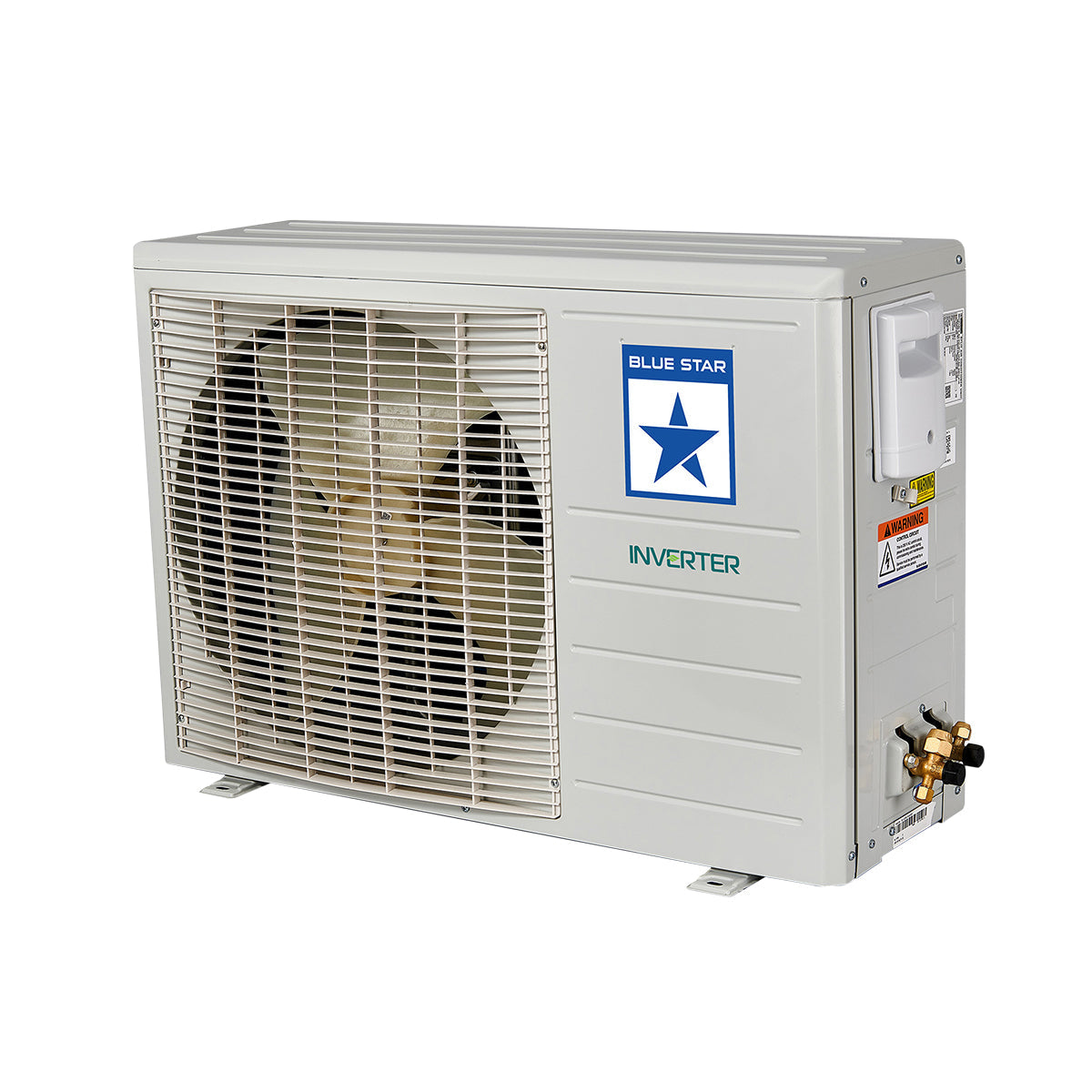

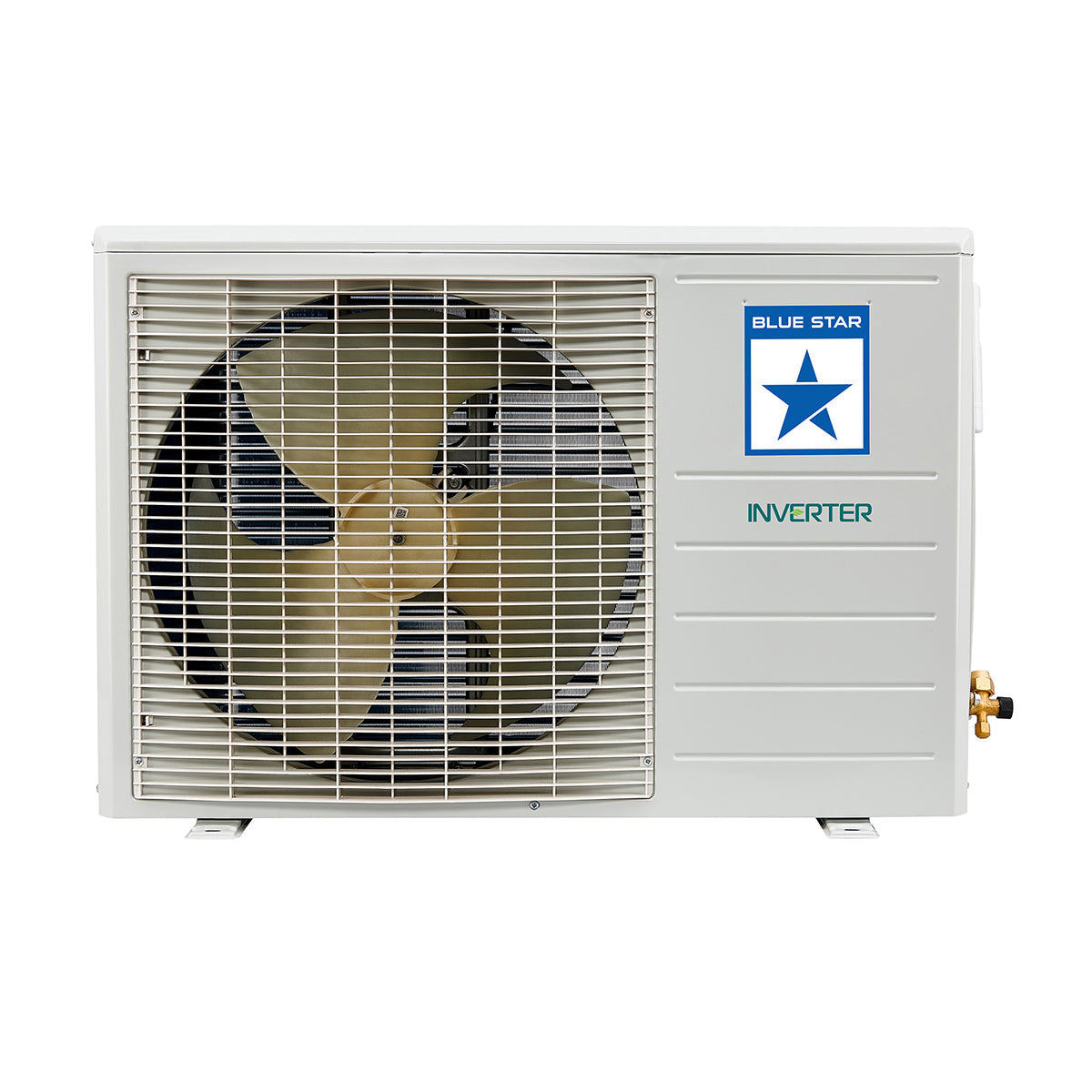

Blue Star 1.5 Ton 5 Star Inverter Split AC | 100% Copper Condenser | R32 Refrigerant | ISEER 5.70 | Cools at 54°C Ambient Temp | Inverter Rotary Compressor | LCD Remote-

General Information

• Product Title: IA518DXU- Inverter Split AC 1.5 Tr 5 Star
• Air Conditioner Technology: Inverter
• Nominal Cooling Capacity (Tonnage): 1.5 Tr
• Star Rating: 5 Star
• Colour of the IDU: White
• Country of Origin: India
• Address of Manufacturer: BLUE STAR LIMITED, KASTURI BUILDINGS, MOHAN T ADVANI CHOWK, JAMSHEDJI TATA ROAD, CHURCHGATE, MUMBAI 400 020

Performance & Efficiency

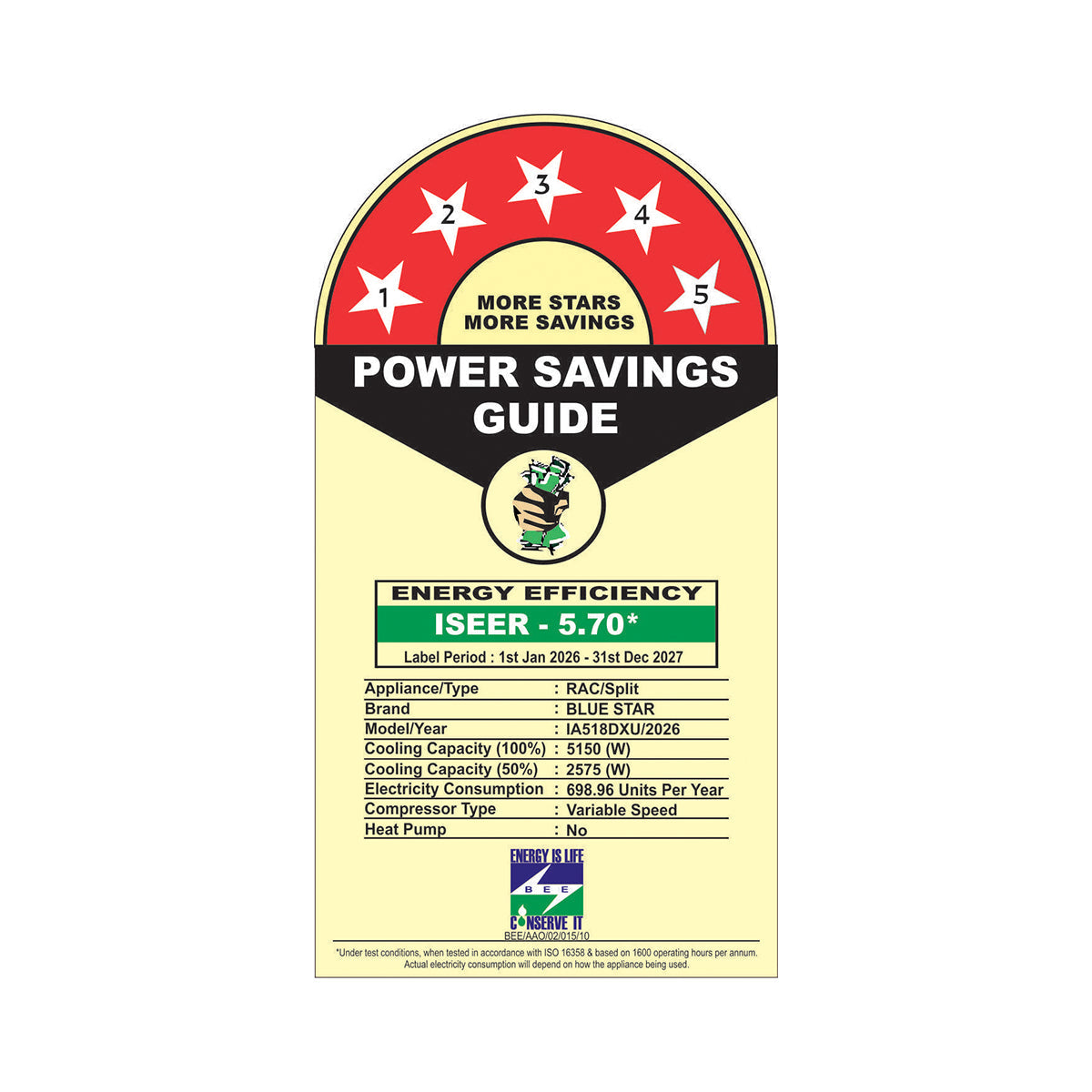

• ISEER: 5.70
• Cooling Capacity (Watt) (Min~Max): 5150 (2830~5522)
• Rated Cooling Capacity (50% Load) (Watt): 2575
• Cooling Rated Power Input (Watt): 1210
• Cooling Power Input (50% Load) (Watt): 400
• Ambient Temp (Cooling) (degree C): 54
• Moisture Removal (Litres/Hour): 0.41

Compressor & Technical Details

• Compressor Type: Inverter Rotary
• Acoustic Jacket on Compressor: Yes
• Condenser Type: 100% Copper
• Refrigerant: R32
• Refrigerant Quantity (kg): 0.97
• Noise Level Outdoor (dB): 54

Electrical & Power Requirements

• (Rated) Voltage / Frequency / Phase: 230V / 50Hz / 1Ph
• Input Power Supply: Indoor Unit
• Power Supply to IDU Source (Core/Gauge): 3C * 1.5 sqmm
• Power Supply to ODU Source (Core/Gauge): 4C * 1.5 sqmm

Dimensions & Weight

• Net IDU Dimension (mm): 1110 x 215 x 335
• Net Weight IDU (kg): 13.5
• Gross IDU Weight (kg): 16.8
• Net ODU Dimensions (Width x Depth x Height) (mm): 889 x 367 x 582
• Net Weight ODU (kg): 28.3
• Gross ODU Weight (kg): 32.5

Pipe & Installation Specifications

• Suction Tube Size Outer Diameter Inch (mm): 1/2" (12.7mm)
• Liquid Tube Size Outer Diameter Inch (mm): 1/4" (6.35mm)

Remote Control & Box Contents

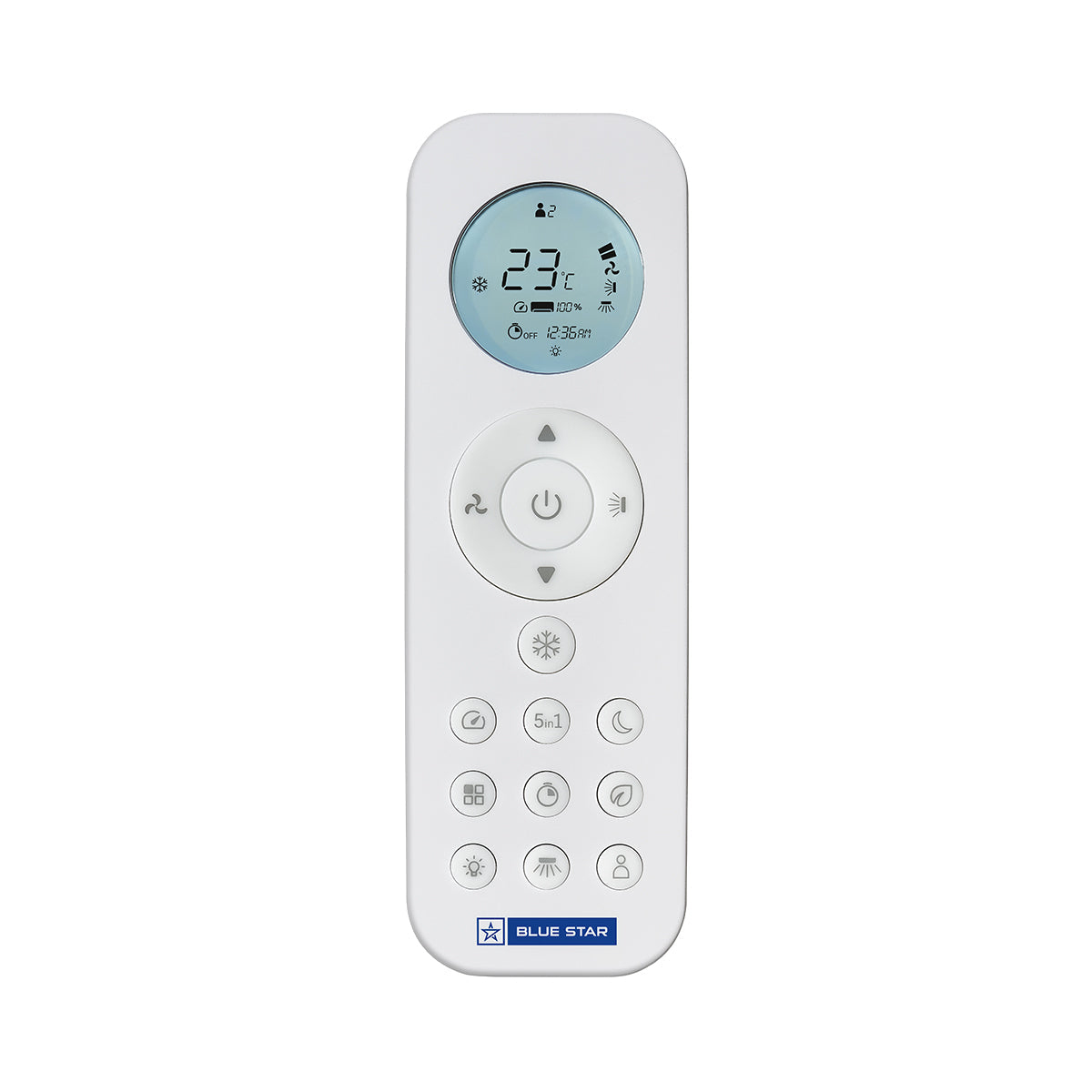

• Remote: LCD Remote with Display
• Night Glow Function on Remote Buttons: Yes
• Remote Battery Type: AAA
• Contents of the box (IDU): IDU Unit, Manual Single Pager, Remote
• Contents of the box (ODU): ODU Unit, Installation Kit

Warranty Information

1 Year Warranty on product

Compressor Warranty

10 Years Warranty on Compressor & 5 years warranty on PCB

Covered in Warranty

All Parts, Excluding the Grill and Plastic Parts. The Warranty Covers Defective Materials and Workmanship from the Date of Purchase. Beyond the First Year of the Warranty Period, Only the Compressor Repair will be Provided Free of Cost and When Necessary.

Not Covered in WarrantyParts:

Air Filter or Front Grill is Not Covered in the Warranty. The Warranty Does not Cover Installation or Demonstration. Accessories External to the System. The Product is not Used According to the Instructions Given in the Instruction Manual. Defects Caused by Improper Use as Determined by the Company Personnel. Modification or Alteration of Any Nature is Made in the Electrical Circuitry or Physical Construction of the Set. Site (Premises where the Product is Kept) Conditions that Do not Confirm to the Recommended Operating Conditions of the Machine. Defects Due to Cause Beyond Control Like Lightning, Abnormal Voltage, Acts of God, While in Transit to Service Centers or Purchaser's Residence.

Warranty Service Type Technician Visit

For more warranty information refer the manufacturer website or the warranty card

• Installation & Demo:

Standard Installation Charges should be paid to the brand authorised service personnels ( ₹ 1300 - ₹ 1500)

*Extra charges may apply on services and accessories not covered under standard installation

• Standard installation of air-conditioners covers only:

1) Drilling of holes into a brick wall for taking out the pipes. 2) Fixing a hole sleeve & cap. 3) Fixing the indoor and outdoor unit. 4) Connecting indoor and outdoor units using the standard Kit provided by the manufacturer (at additional cost unless specified otherwise). 5) Wrapping the pipe with seasoning tape.

• Not covered as part of standard Installation charges are: 1) Outdoor unit stand 2) Extra copper pipe & wire 3) Drain pipe extension 4) Wiring extension from the meter to the installation site 5) Stabilizer if needed is chargeable. 6) Plumbing and masonry work. 7) Power-point, MCB fitting and any other electrical work. 8) Carpentry work. 9) Dismantling, shifting of the old AC's masonry 10) Core cutting fabrication and electrical.For Further Details Contact Brand
