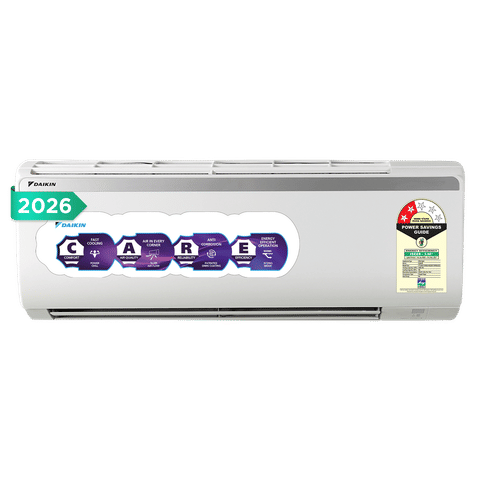

Daikin FTQ Series 1 Ton 2-Star Non-Inverter Split AC (3.35 kW / 11430 Btu/h Cooling, 3.90 ISEER, PM 2.5 Filter, New Coanda Airflow, Power Chill, Econo Mode, R-32 Refrigerant, White Indoor Unit)-FTQ35XV16WBB

General Information

• Brand: Daikin
• Series: FTQ Series (Standard Series)
• Indoor Unit Model No: FTQ35XV16WBB
• Outdoor Unit Model No: RQ35XV16WBB
• Air Conditioner Type: Split AC (Fixed Speed)
• Inverter Technology: Non-Inverter

Performance & Cooling Capacity

• Cooling Capacity (Rated): 3.35 kW
• Cooling Capacity in Btu/h: 11,430 Btu/h
• Compressor Type: Rotary Compressor
• Refrigerant Type: R-32
• Operating Ambient Temperature Range (Cooling): 19.4°C ~ 50°C DB
• Moisture Removal Rate: 1 Liter/Hour

Energy Efficiency & Electricals

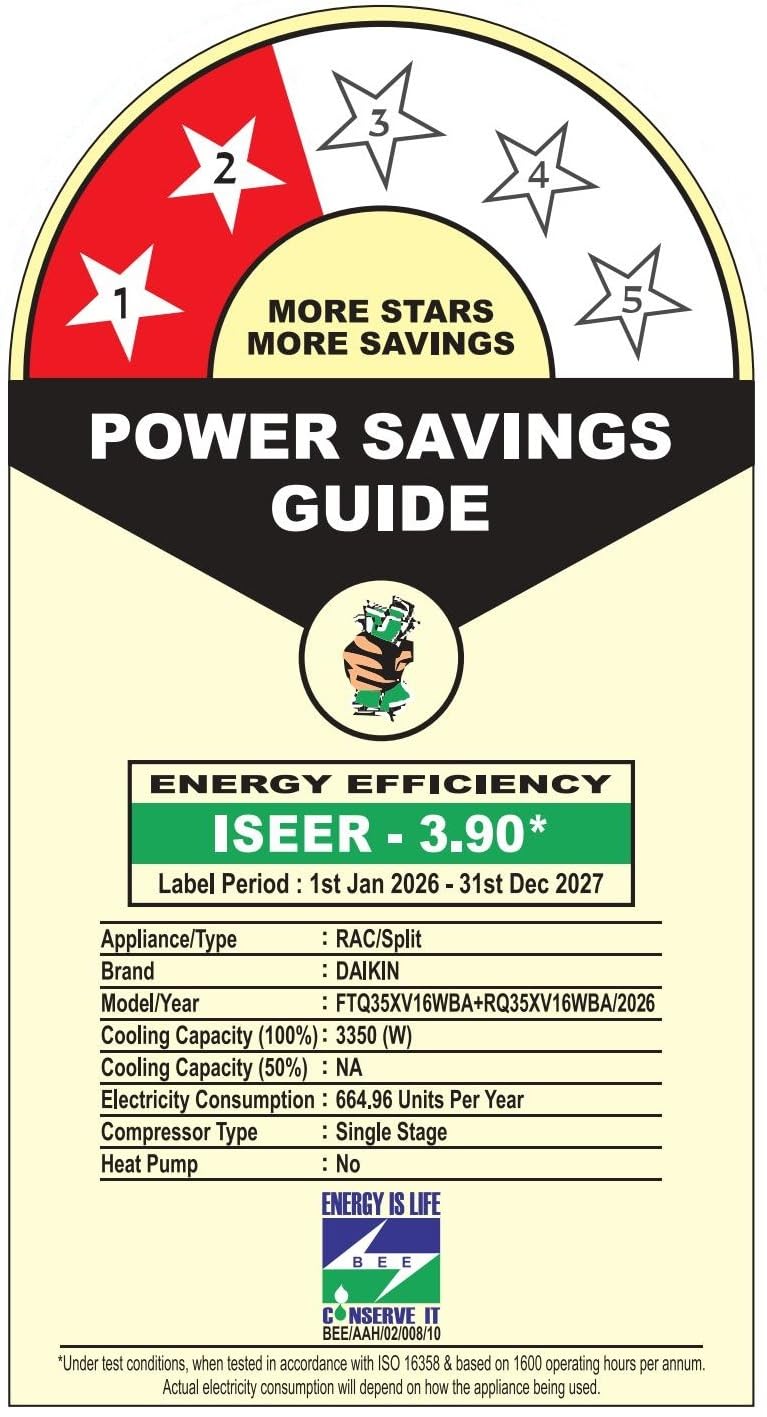

• Energy Star Rank / Rating: Non-Inverter - 2 Star
• ISEER Value: 3.90
• Annual Power Consumption: 664.96 kWh
• Power Consumption (Cooling): 859 Watts
• Operating Current (Cooling): 3.8 A
• Power Supply Requirements: 1 Phase, 230 V, 50 Hz
• Power Supply Intake Location: Outdoor Unit
• Breaker Size Requirement: 15 A

Airflow & Acoustics

• Airflow Rate (Cfm): 473 Feet³/min
• Airflow Rate (Cmm): 13.4 m³/min
• Sound Levels (High / Medium / Low): 43 / 37 / 32 dB
• Airflow Features: Power airflow dual flaps, Wide-Angle Louvers, Vertical auto-swing (up & down), New Coanda Airflow

Smart Functions & Comfort Modes

• Air Filtration: PM 2.5 Filter
• Self Diagnosis Panel: Yes
• Sleep Mode: Yes
• Timer Function: Yes
• Auto Restart: Yes (Auto-Restart after Power Failure)

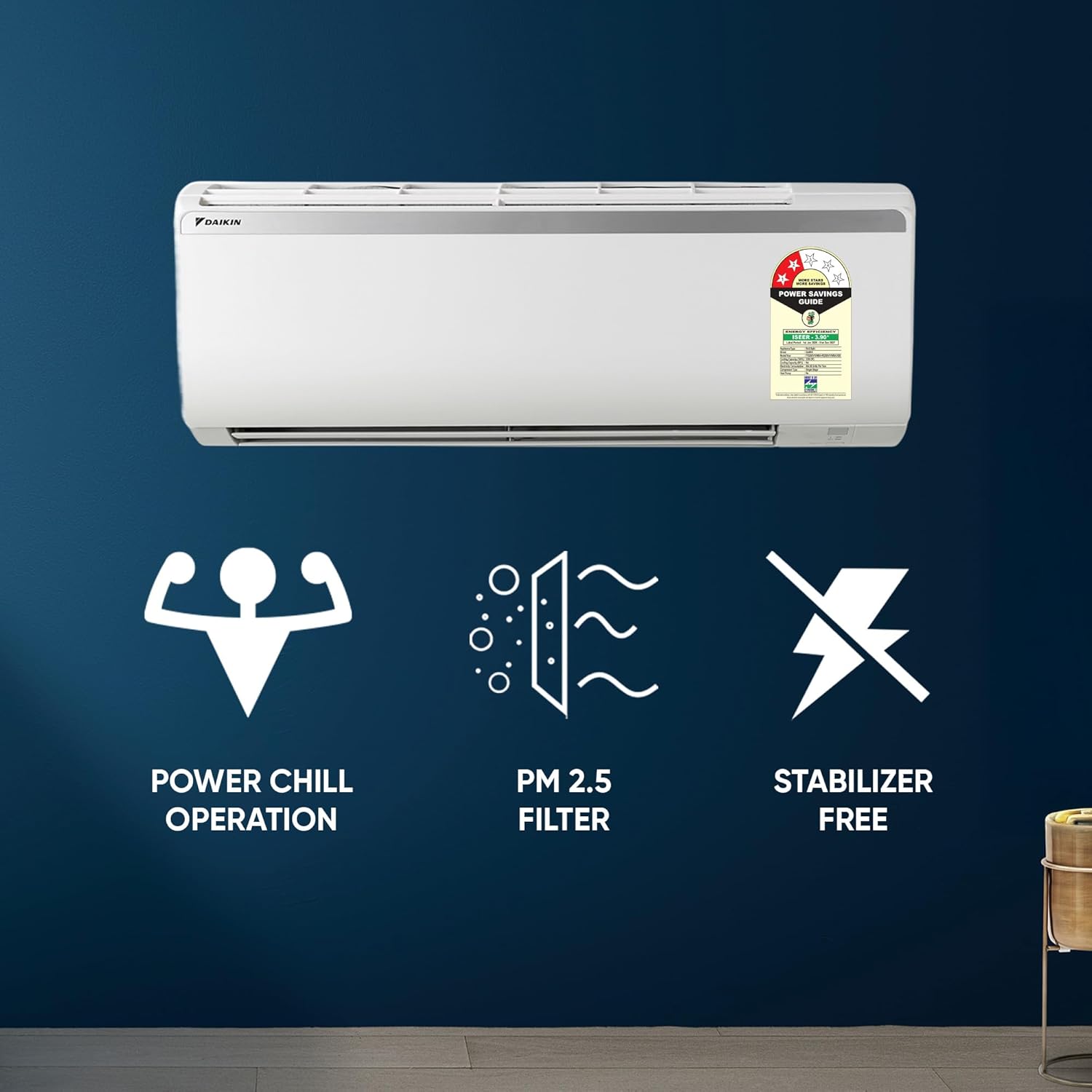

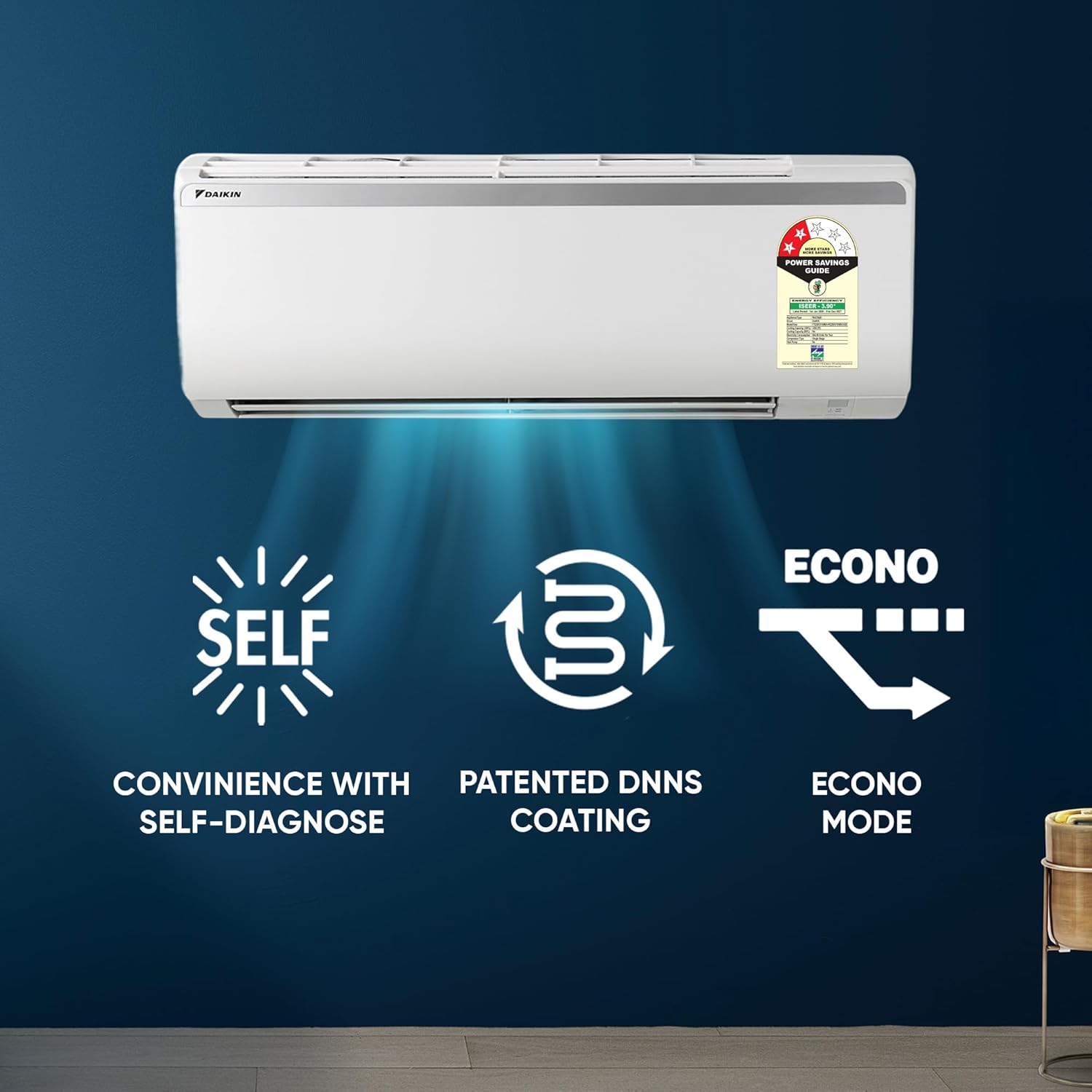

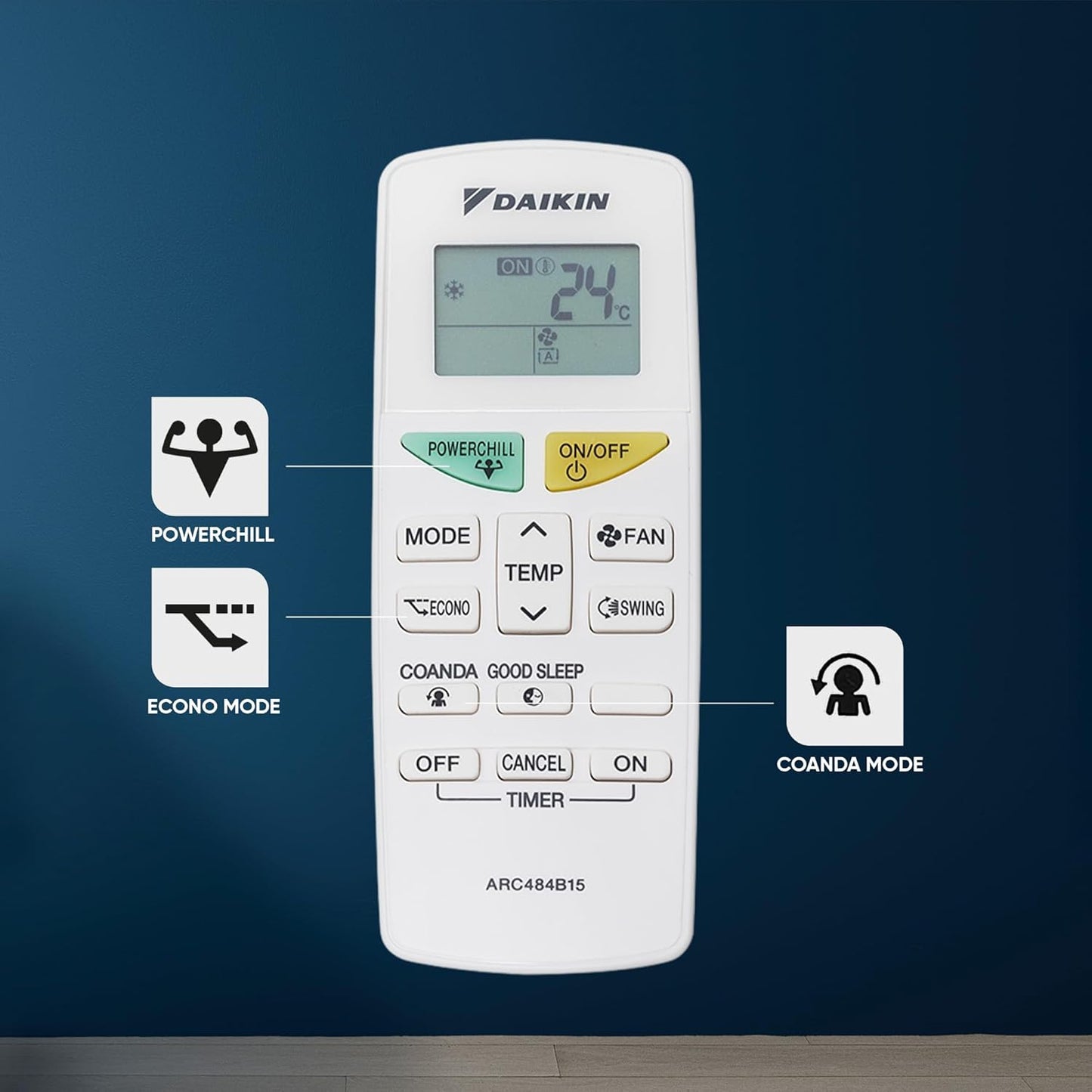

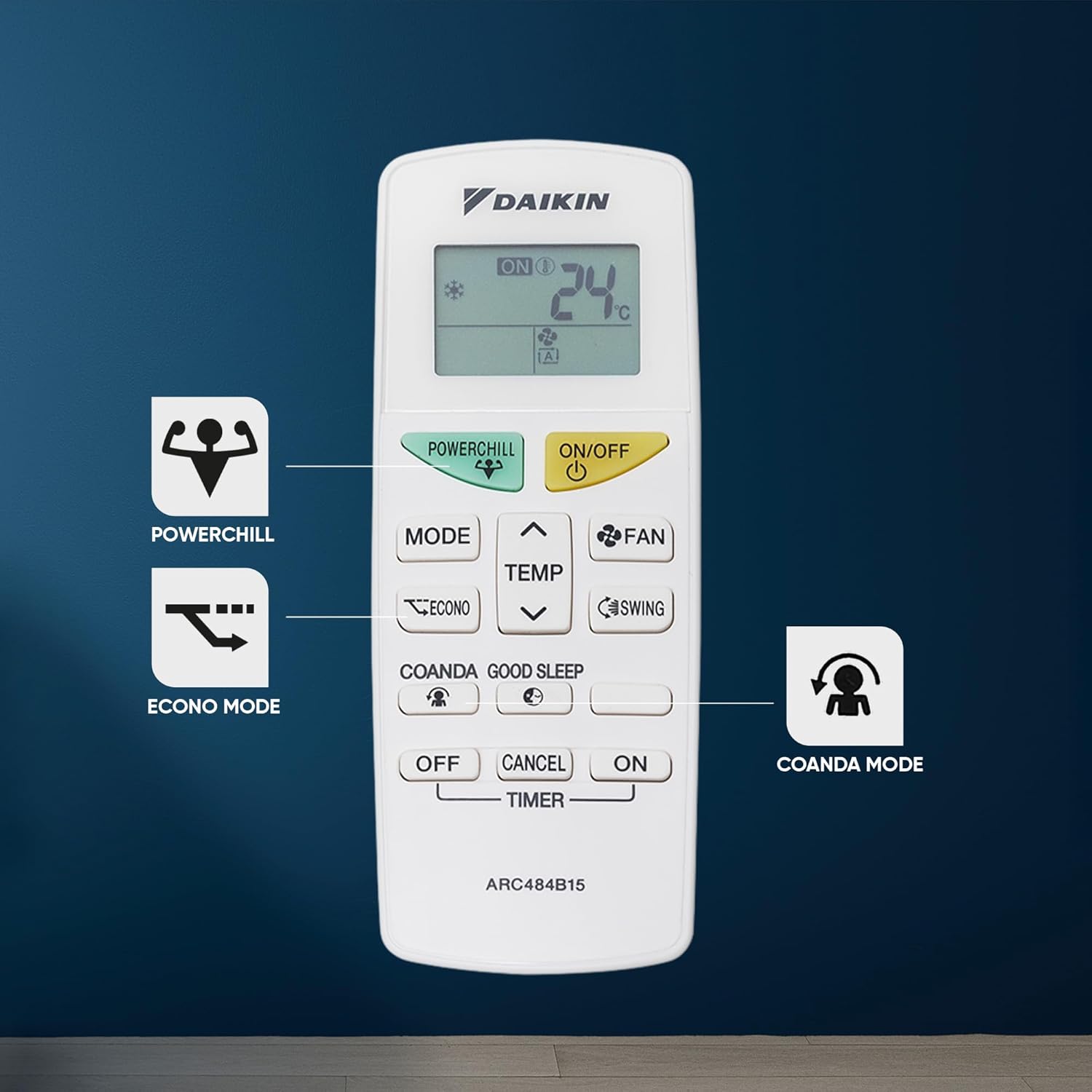

• Operational Modes: Power Chill Operation, Econo Mode, Smell proof operation

Piping Dimensions & Installation Limits

• Piping Connection Sizes (Gas/Liquid): ∅9.5 / ∅6.4 mm (3/8" ; 1/4" inch)
• Piping Length (Charge-less limit): 10 meters
• Maximum Permissible Piping Length: 20 meters
• Maximum Permissible Piping Height: 15 meters

Physical Aesthetics & Dimensions

• Indoor Unit Front Panel Colour: White
• Indoor Unit Dimensions (H x W x D): 298 x 800 x 229 mm
• Indoor Unit Machine Weight: 9.5 Kg
• Outdoor Unit Casing Colour: Ivory White

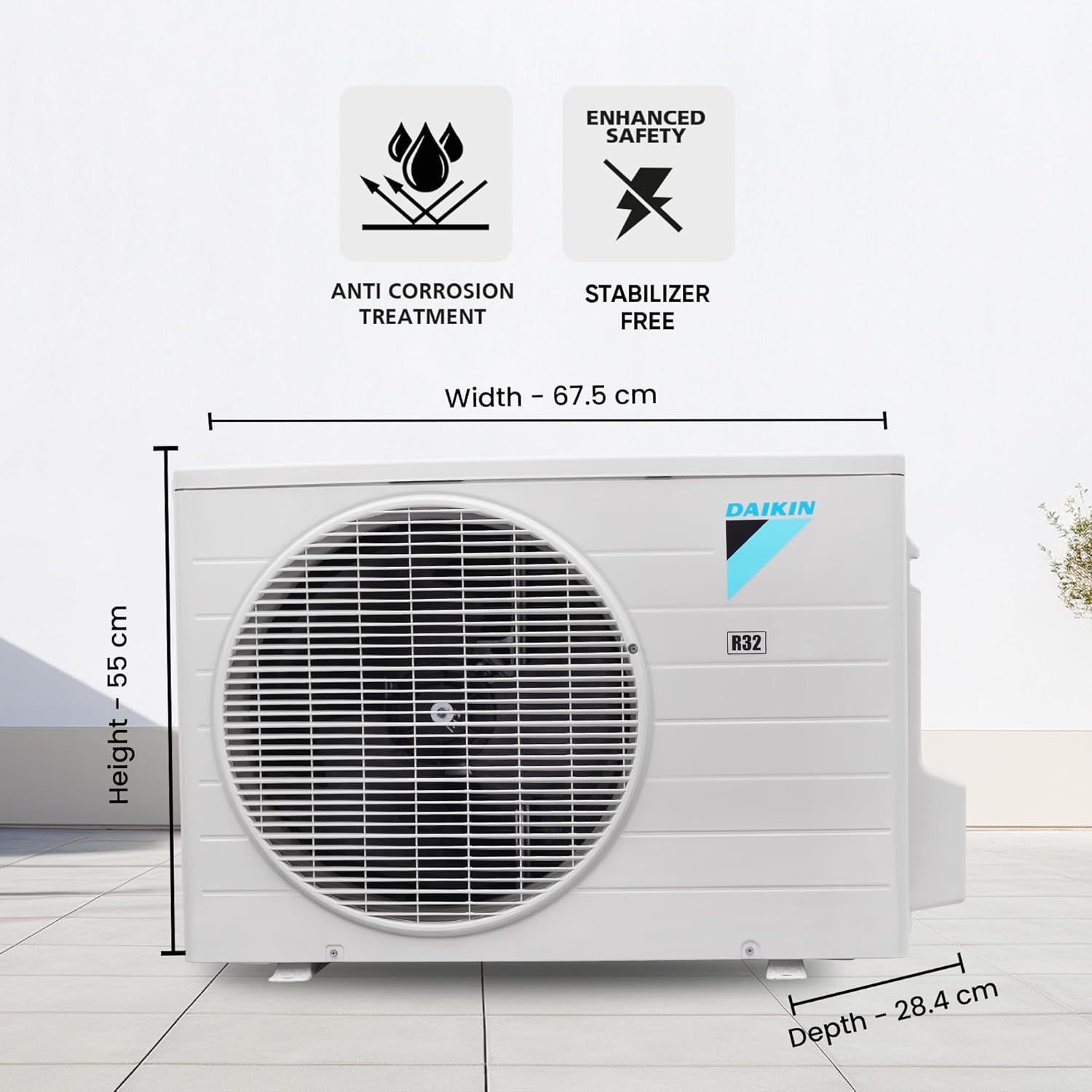

• Outdoor Unit Dimensions (H x W x D): 550 x 675 x 284 mm
• Outdoor Unit Machine Weight: 28.5 Kg

Warranty Information

• 1 Year Comprehensive Warranty, 10 Years Compressor Warranty, 5 Years PCB Warranty

Covered in Warranty

All Parts, Excluding the Grill and Plastic Parts. The Warranty Covers Defective Materials and Workmanship from the Date of Purchase. Beyond the First Year of the Warranty Period, Only the Compressor Repair will be Provided Free of Cost and When Necessary.

Not Covered in WarrantyParts:

Air Filter or Front Grill is Not Covered in the Warranty. The Warranty Does not Cover Installation or Demonstration. Accessories External to the System. The Product is not Used According to the Instructions Given in the Instruction Manual. Defects Caused by Improper Use as Determined by the Company Personnel. Modification or Alteration of Any Nature is Made in the Electrical Circuitry or Physical Construction of the Set. Site (Premises where the Product is Kept) Conditions that Do not Confirm to the Recommended Operating Conditions of the Machine. Defects Due to Cause Beyond Control Like Lightning, Abnormal Voltage, Acts of God, While in Transit to Service Centers or Purchaser's Residence.

Warranty Service Type Technician Visit

For more warranty information refer the manufacturer website or the warranty card

• Installation & Demo:

Standard Installation Charges should be paid to the brand authorised service personnels ( ₹ 1300 - ₹ 1500)

*Extra charges may apply on services and accessories not covered under standard installation

• Standard installation of air-conditioners covers only:

1) Drilling of holes into a brick wall for taking out the pipes. 2) Fixing a hole sleeve & cap. 3) Fixing the indoor and outdoor unit. 4) Connecting indoor and outdoor units using the standard Kit provided by the manufacturer (at additional cost unless specified otherwise). 5) Wrapping the pipe with seasoning tape.

• Not covered as part of standard Installation charges are: 1) Outdoor unit stand 2) Extra copper pipe & wire 3) Drain pipe extension 4) Wiring extension from the meter to the installation site 5) Stabilizer if needed is chargeable. 6) Plumbing and masonry work. 7) Power-point, MCB fitting and any other electrical work. 8) Carpentry work. 9) Dismantling, shifting of the old AC's masonry 10) Core cutting fabrication and electrical.For Further Details Contact Brand
